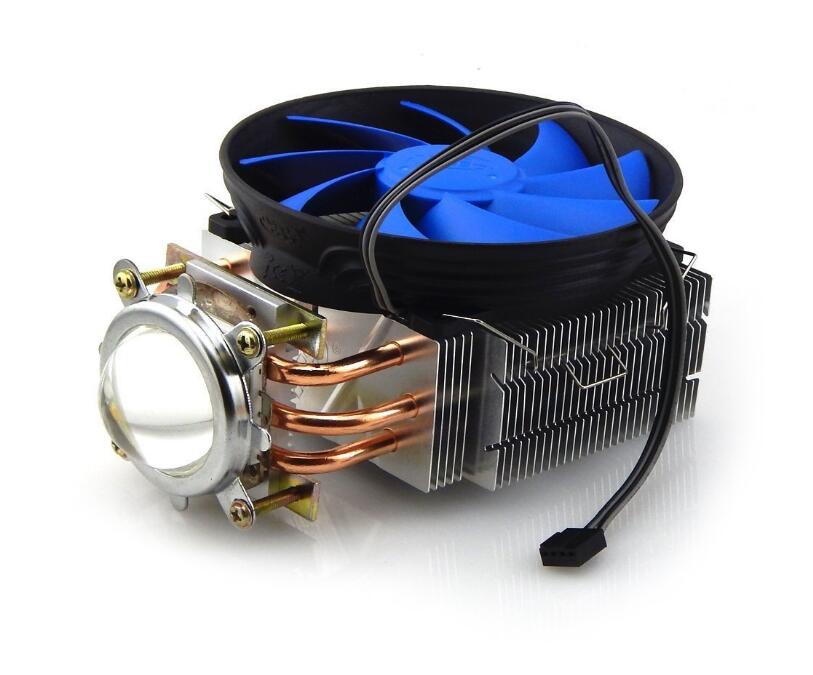

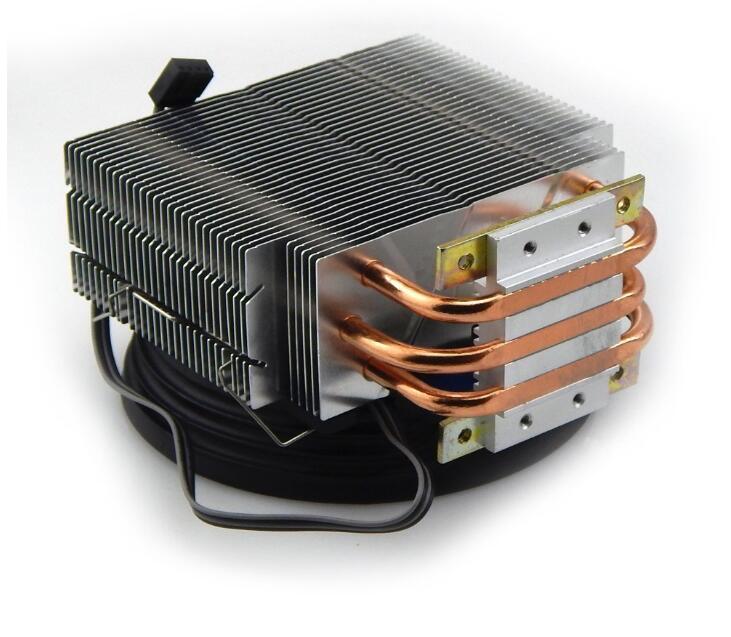

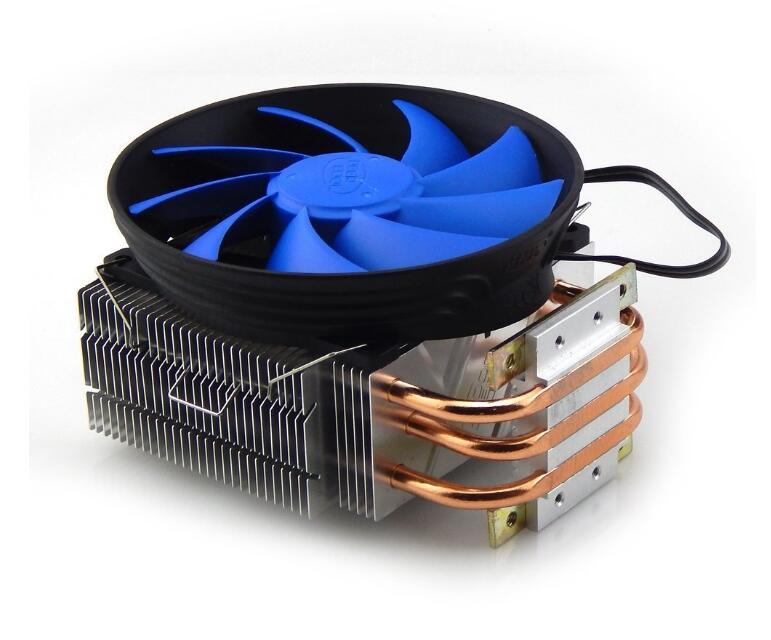

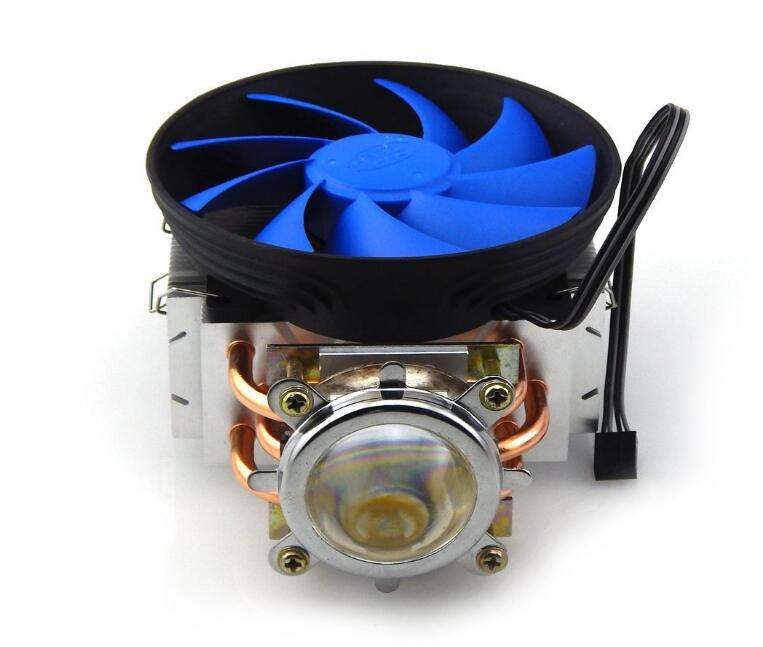

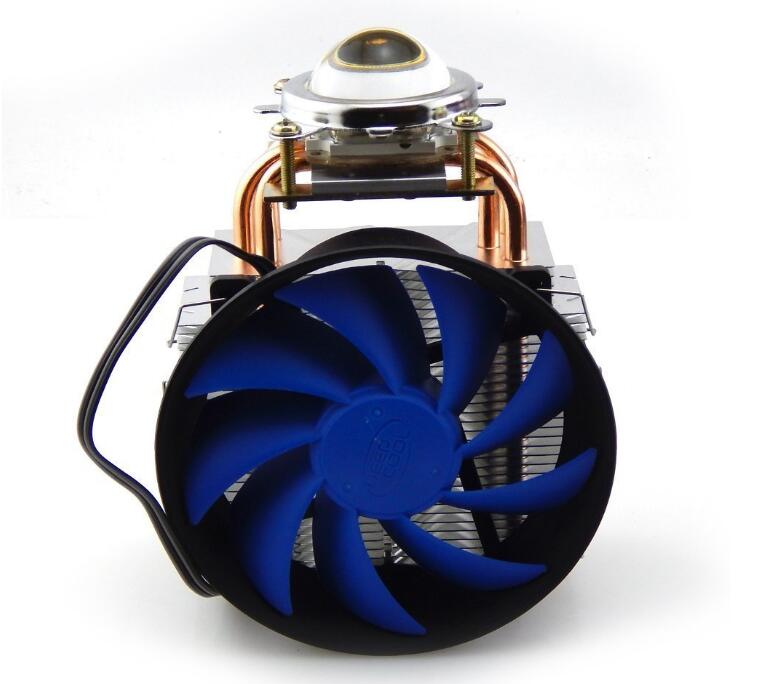

3 Copper Pipe Heat Sink With Fan + 44mm Lens For 50W 100W High Power Led Chip
Specifications:
Fan Voltage: 12V DC
Fan Current: 0.03-0.1¡À 0.02AMP
Rotate Speed: 1050-1600RPM
Blast Capacity: 54.25CFM
Noise: 17.8-26.1DBA
Fan Dimension: 120(L)*120(W)*25(H) mm
Heatsink Dimension: 110(L)*90(W)*43(H) mm
Weight: 335g
Description:
1) Butterfly-shaped design for larger heat
dissipation area,improve the overall thermal
performance,also the style is unique and nice
2) fan with de-vibration cover,both heat and
silent;
3) heat pipes with HDT technology,powerful
performance to meet the elite enthusiasts;
4) fin hinged design on both sides prevents air
leak effectivly, and heat more evenly;
5) multi-compatible clip
Application:
Cooling; Avoid LED overheat
Fit High Power LED 10W-150W
Kind notice: there are two groups of black wires
and grey wires. one black wire represents 12V-
and one grey wire represents 12V+. the other
black and grey wires have no use.
ooks much brighter; Fit the 10W-150W High
Power Led
Specification for Base:
Material: aluminum alloy
Compatible for 10W-150W Spot Lights,
Automobile Lights, Projector Lamps etc.
Specification for Lens:
Diameter: 44mm
Height: 19mm
Angle: 60 degrees
Focal Length: 30mm
Material: high quality glasses
Package Include:
1x 3 Copper Pipe Heatsink with Fan + 44mm 60 degree Lens
