50mm Lens + Reflector cup +Fixed Bracket For 10W Led Light Chip

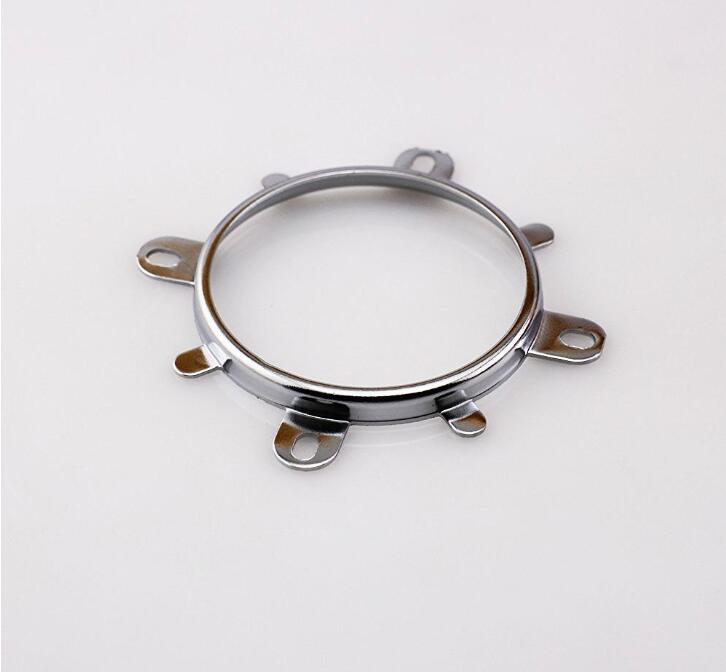

Fixed frame size:
Fixed frame diameter: 53mm (not include fixed screw parts)
Fixed frame thickness: 7.3mm

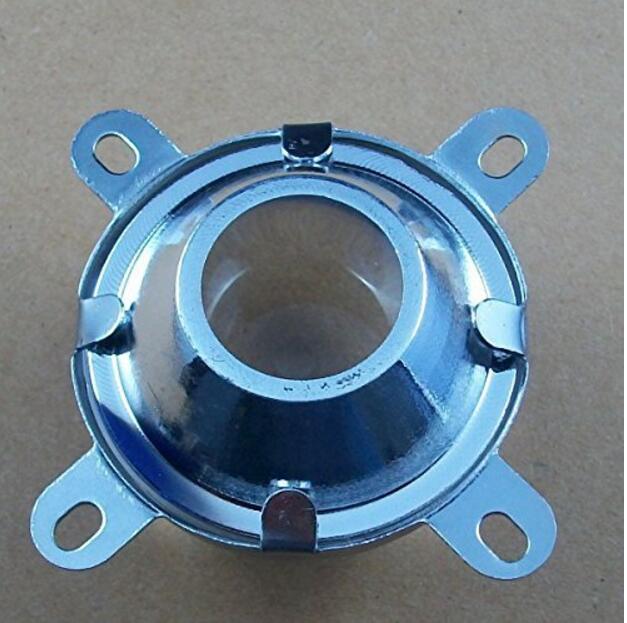

Reflector cup size:
Reflector cup diameter: 50mm
Reflector cup upper diameter: 41mm
Reflector cup Lower diameter: 22mm
Reflector cup height 14.5mm
Material: plastic plating
Lens size：
Diameter 50mm, inner diameter: 46.2mm, height 22mm, focal length 24mm

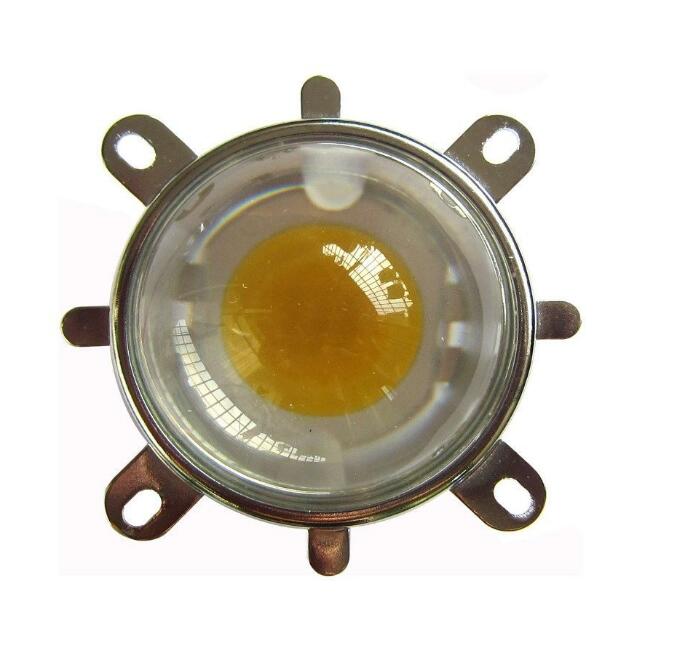

After assembly specifications
Overall height: 37.2mm
Diameter: 53mm (not include fixed screw parts)
Suitable for 10W round LED (3 Series and 3 paralleling )
and 20W (4 Series and 4 paralleling) of round LED
Light emitting angle of about 25 degrees (the array
density of the chip has an effect on the angle of light)

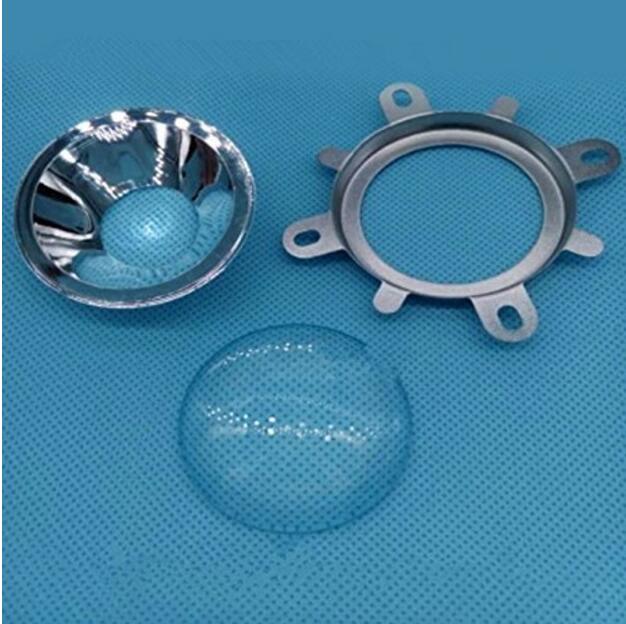

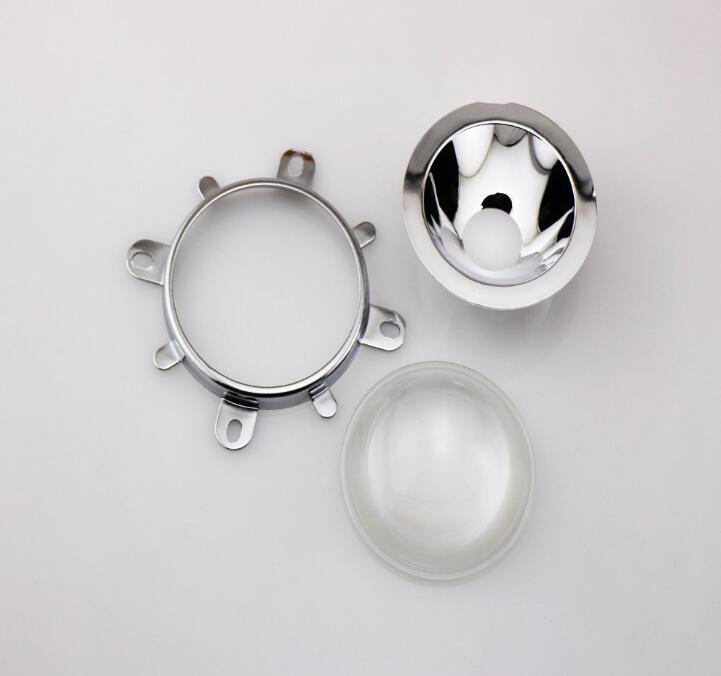

Package:
1*50mm lens
1*Reflector cup
1*Fixed Bracket
