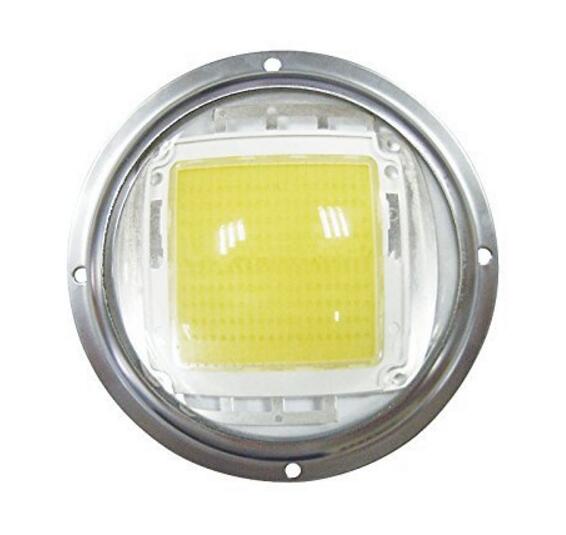

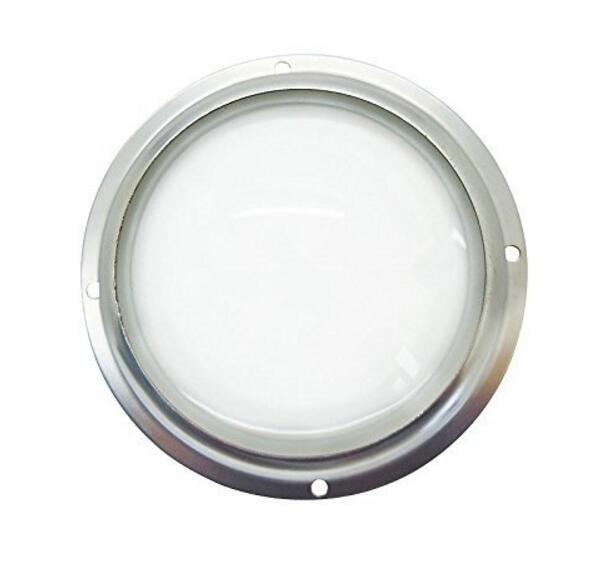

100mm Lens +waterproof sealing ring +Fixed Bracket For 50W 100W 200W 500W Led Light Chip
Material: glass (High boron silicon) temperature: +200 -30 degree
Product Description: non spherical design
Lens diameter: 99.5mm
Inner circle diameter: 91 (without edge diameter)
Height: 20.5mm
Edge thickness: 4mm
Focal length: 135mm (for reference only)
Light emitting angle: 5-120 degree (adjust the distance between the lens and the light source)
Fit holder specification:
Fixed frame diameter: 121mm
Fixed frame inner circle diameter: 91.5mm
Screw space adjacent to the fixed frame: 81.5mm
With the fixed frame directly on the lamp emitting angle of 120 degrees.

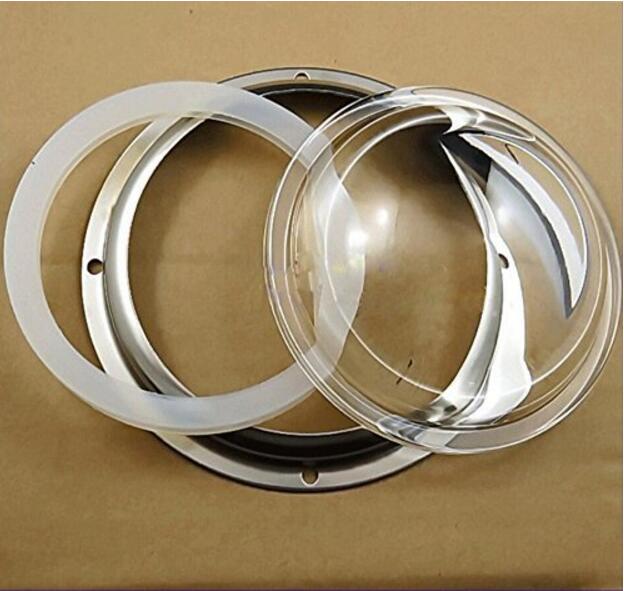

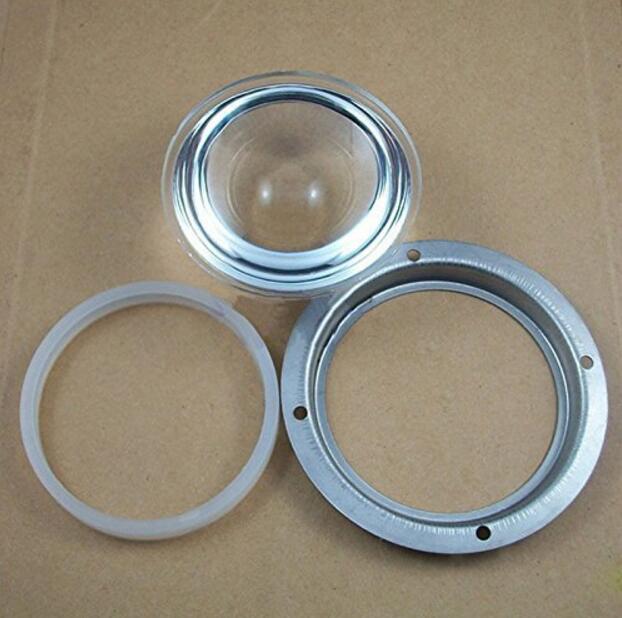

Package:
1*100mm lens
1*waterproof sealing ring
1*Fixed Bracket
