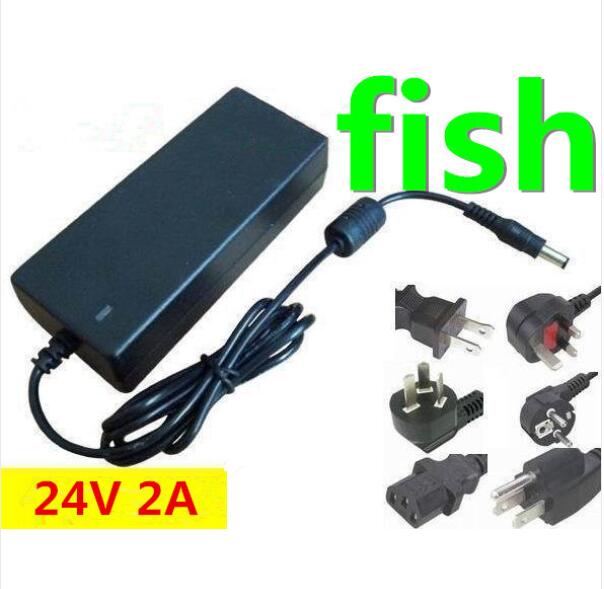

2A 48W switching mode power supply Output DC24V
detail:
Rated input:100-240VAC 50/60Hz Max:90-264VAC 47/63Hz
Rated output rating: Load regulation: 24V±5% 2A 48W Max.
Output no-load voltage: 105% output voltage Max(Nom.)
Inrush current (Cold): 80A Max.
Protection: OCP/ OVP/ SCP
Dielectric strength: Input – Output 3.0 KV for 1 minute
Insulation resistance: 500VDC 50MΩ Minimum
Efficiency: 82% Normally @ rated load
Ripple & Noise: 1% output voltage Max.
Line regulation: ±1%
Hold up time: 3ms
Temperature rise: 95 °C Max. @ rated load / Class B
Applicable standard: UL60950, IEC-60950/ EN60950
Normal operating environment: 0°C ~ 40°C 20% ~ 80% R.H
Storage environment: -20°C ~ 70°C 20% ~ 90% R.H

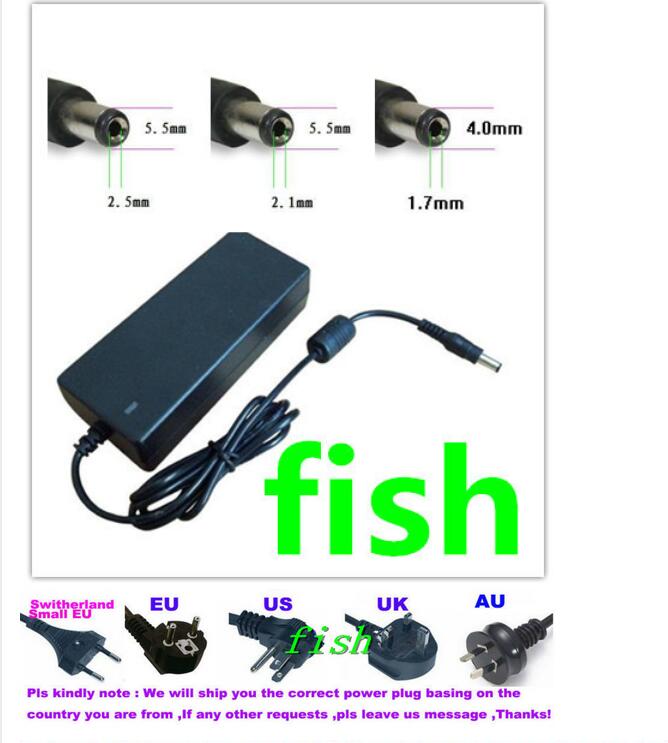

DC specification:2.1*5.5*10(According to the guest requirements)

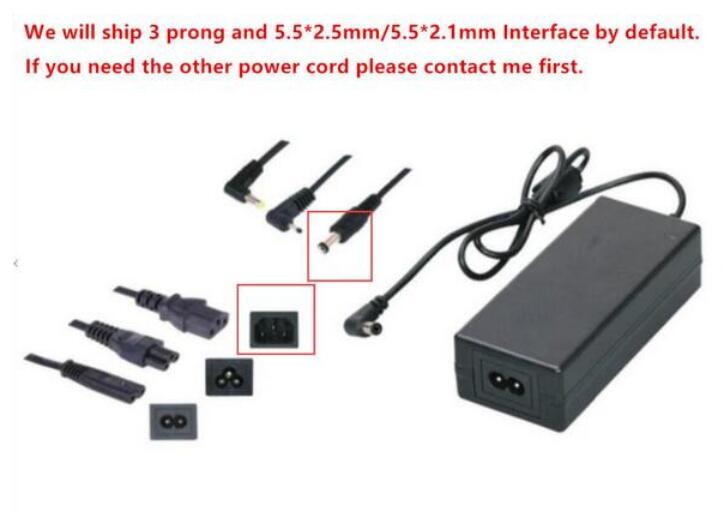

Configuration: IEC320-C14
Package Includes :
2A Power supply
Power cable with Plug
