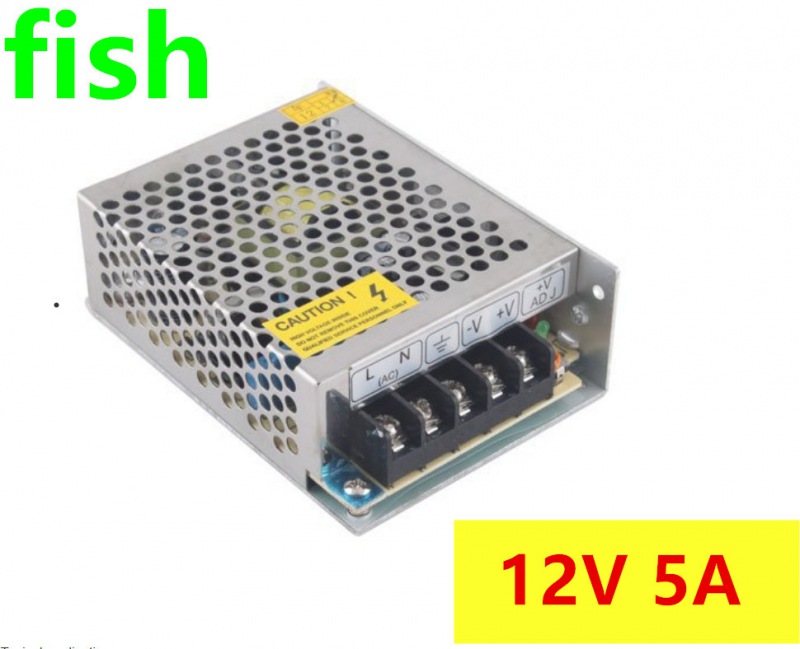

Model

     Specification

S-60-5

S-60-12

S-60-24

  DC Output voltage

  5V

  12V

  24V

  Output voltage range (Note:2)

  ±2%

  ±1%

  ±1%

  Rated output current

  12A

  5A

  2.5A

  Output current range

  0~12A

  0~5A

  0~2.5A

  Wave and noise(Note:3)

  100mVp-p

 75mVp-p

  75mVp-p

  Inlet stability (Note:4)

  ±0.5%

  ±0.5%

  ±0.5%

  Load stability (Note:5)

  ±1%

  ±0.5%

  ±0.5%

  DC output power

60W

60W

60W

  Efficiency

  73%

  78%

  82%

  Adjustable range for DC voltage

  +10, -5%

  ±10%

  ±10%

  AC input voltage range

  85~132VAC/170~264VAC selected by switch 47~63Hz, 240~370VDC

  Input current

  2A/115V  1A/230V

  AC Inrush current

  Cold-start current 18A/115V  36A/230V

  Leakage current

  <3.5mA/240VAC

  Overload protection

  105%-150% Type: cut down output  Reset: auto recovery

  Temperature coefficient

  ± 0.03%/°C(0~50°C)

  Setup, rise, hold up time

  800ms, 50ms, 10ms/150V  300ms, 50ms, 80ms/230VAC

  Vibration

  10~500Hz, 2G 10min,/1 cycle. Period for 60min, Each axes

  Withstand voltage

  I/P-O/P:1.5KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

  Isolation resistance

  I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

  Working temperature and humidity

  -10°C~+60°C (Refer to output derating curve), 20%~90%RH

  Store temperature and humidity

  -20°C~+85°C, 10%~95%RH

  Safety standards

  UL 1012 TUV EN6050(IEC, UL1950)Approved

  EMC standards

  CISPR22(EN55022), IEC801-2,3,4 IEC555-2Verification

Note:
1. The parameter under the testing condition: 230VAC input, rated load, 25°C70% RH. Temperature.
2. Tolerance: Including setting tolerance, circuit stability and load stability. (Note: 5).
3. Wave test: Adopting “A12” double wire for 20MHz and 0.1 UF&47UF capacitor short-circuit for interrupting.
4. Inlet voltage stability test: the lowest voltage will be up to the highest voltage when the circuit overload.
5. Load stability test: The load is from 0% to 100%.

6. C2, 3, 6 must be knocked down.
