Model

 Specification

S-100-3

S-100-5

S-100-7.5

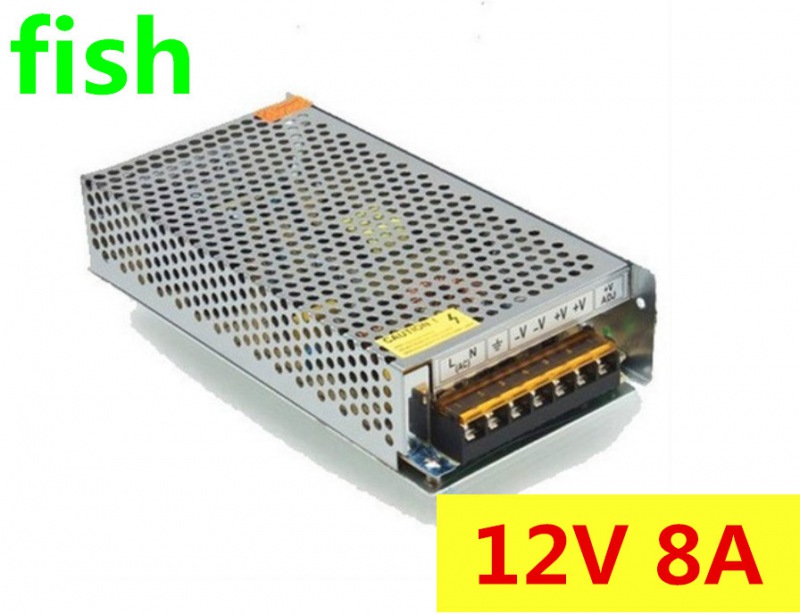

S-100-12

S-100-15

S-100-24

S-100-27

S-100-48

DC Output voltage

3V

5V

7.5V

12V

15V

24V

27V

48V

Output voltage range(Note:2)

±2%

±2%

±1%

±1%

±1%

±1%

±1%

±1%

Rated output current

20A

20A

13.6A

8.3A

6.7A

4.5A

3.7A

2A

Output current range

0~20A

0~20A

0~13.6A

0~8.5A

0~6.7A

0~4.5A

0~3.7A

0~2A

Wave and noise(Note:3)

75mVp-p

75mVp-p

70mVp-p

60mVp-p

60mVp-p

50mVp-p

50mVp-p

50mVp-p

Inlet stability(Note:4)

±0.5%

±0.5%

±0.5%

±0.3%

±0.3%

±0.2%

±0.2%

±0.2%

Load stability(Note:5)

±0.5%

±0.5%

±0.5%

±0.3%

±0.3%

±0.2%

±0.2%

±0.2%

DC output power

60W

100W

102W

100W

100.5W

108W

100W

96W

Efficiency

74%

78%

80%

82%

82%

85%

86%

86%

Adjustable range for DC voltage

2.85~3.3V

4.75~5.5V

6.75~8.25V

10.8~13.2V

13.5~16.5V

21.6~26.4V

26~32V

43.2~52.8V

AC input voltage range

85~132VAC/180~264VAC selected by switch 47~63Hz,255~370VDC

Input current

2.4A/115V 1.2A/230V

AC Inrush current

Cold-start current 30A/115V 60A/230V

Leakage current

<1mA/240VAC

Overload protection

105 ~ 150%  Protection type :pulsing hiccup shutdown Reset: auto recovery.

Temperature coefficient

±0.03%/°C(0~50°C)

Setup, rise, hold up time

200ms, 100ms, 30ms

Vibration

10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Working temperature and humidity

-10°C~+60°C(Refer to output load derating curve),20%~90%RH

Store temperature and humidity

-20°C~+85°C,10%~95%RH
