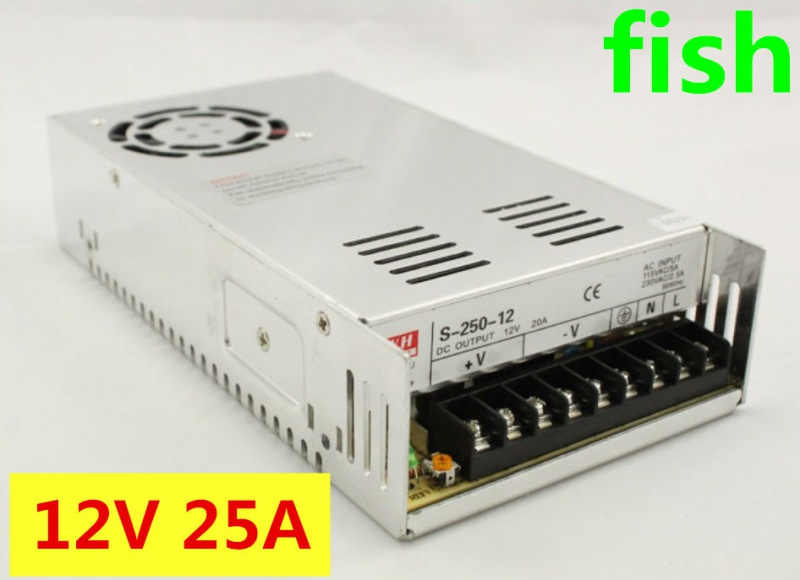

Model

Specification

S-300-5

S-300-7.5

S-300-12

S-300-13.5

S-300- 15

S-300-24

S-300-27

S-300-48

DC Output voltage

5V

7.5V

12V

13.5V

15V

24V

 27V

48V

Output voltage range(Note:2)

  ±2%

  ±2%

  ±1%

  ±1%

 ±1%

  ±1%

 ±1%

  ±1%

  Rated output current

  50A

  40A

  25A

22.2A

20A

  12.5A

11.1A

  6.25A

  Output current range

  0~50A

0~40A

  0~25A

0~25.8A

 0~20A

  0~14.6A

 0~13A

  0~7.3A

  Wave and noise(Note:3)

  75mVp-p

  75mVp-p

  75mVp-p

  75mVp-p

 75mVp-p

  75mVp-p

75mVp-p

  75mVp-p

  Inlet stability(Note:4)

  ±0.5%

  ±0.5%

  ±0.5%

  ±0.5%

 ±0.5%

  ±0.5%

 ±0.5%

  ±0.5%

  Load stability(Note:5)

  ±1%

  ±1%

  ±0.5%

 ±0.5%

 ±0.5%

  ±0.5%

  ±0.5%

±0.5%

  DC output power

  250W

  300W

  300W

 299.7W

 300W

  300W

 299.7W

  300W

  Efficiency

  78%

78%

  83%

 83%

83%

  84%

 85%

  86%

  Adjustable range for DC voltage

  4.5~5.6V

6~9V

  10~13.2V

12~15V

13.5~18V

  20~26.4V

 26~32V

  41~56V

  AC input voltage range

      85~132VAC/176~264VAC selected by switch 47~63Hz, 248~370VDC

  Input current

      6.5A/115V  4A/230V

  AC Inrush current

      25A/115V  50A/230V

    Leakage current

      <3.5mA/240VAC

  Overload protection

     105%-150% Type:cut down output  Reset: auto recovery.

  Over-voltage protection

  5.75~6.75V

 9.4~10.9V

  13.8~16.2V

 15.5~16.2V

18~21V

  27.6~32.4V

33.7~39.2V

  57.6~67.2V

  High-temperature protection

     ERH3≥65°C~70°C Fan on, < =55°C~60°C Fan off, >=80°C~85°C, cut off output (5~15V)~(24~48V)

  Temperature coefficient

     ±0.03%/°C(0~50°C)

  Setup, rise, hold up time

     200ms, 100ms, 20ms

  Vibration

     10~500Hz, 2G 10min,/1 cycle. Period for 60min, Each axes

  Withstand voltage

     I/P-O/P:1.5KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

  Isolation resistance

     I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

  Working temperature and humidity

     -10°C~+60°C(Refer to output derating curve), 20%~90%RH

  Store temperature and humidity

     -20°C~+85°C, 10%~95%RH

  Safety standards

     Design refer to UL1950

  EMC standards

     Design refer to FCC part 15J class A

Note:
1. The parameter under the testing condition: 230VAC input, rated load, 25°C70% RH. Temperature.
2. Tolerance: Including setting tolerance, circuit stability and load stability. (Note: 5).
3. Wave test: Adopting “A12” double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
4. Inlet voltage stability test: the lowest voltage will be up to the highest voltage when the circuit overload.
5. Load stability test: The load is from 0% to 100%.
6.C3, 4 must be knocked down.
