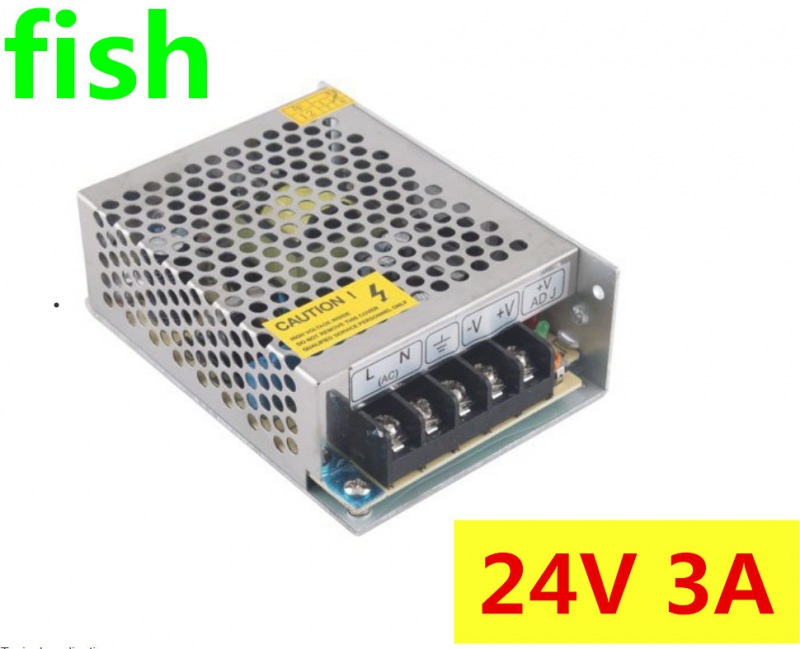

Model

S-75-12

S-75-15

S-75-24

S-75-48

DC output voltage

12V

15V

24V

48V

Rated output current

6A

5.0A

3A

1.5A

Output current range

0-6A

0-5A

0-3A

0-1.5A

Wave and noise

75mVp-p

100mVp-p

100mVp-p

100mVp-p

Inlet stability

±0.5%

±0.5%

±0.5%

±0.5%

Load stability

±0.5%

±0.5%

±0.5%

±0.5%

Efficiency

78%

79%

82%

83%

Adjustable range for DC voltage

±10%

±10%

±10%

±10%

AC input voltage range:

85~132VAC/170~264VAC selected by switch 47~63Hz;240~370VDC

AC inrush current:

Cold-start current 15A/115V 30A/230V

Overload protection:

105%~150% Type:plusing hiccup shutdown Reset:auto recovery

Setup rise hold-up time:

200ms,50ms,20ms

Withstand voltage:Input and output internal:

1.5KvAC,Output and enclosure:0.5KvAC

Isolation resistance:

Input and output internal,input and enclosure,output and enclosure:500VDC/100MΩ

Working temperature

0~50°C

Safety standards:

GB4943 UL60950 EN60950

EMC standards:

EN55022 GB9254,class A
