Model

Specification

S-200-5

S-200-12

S-200-15

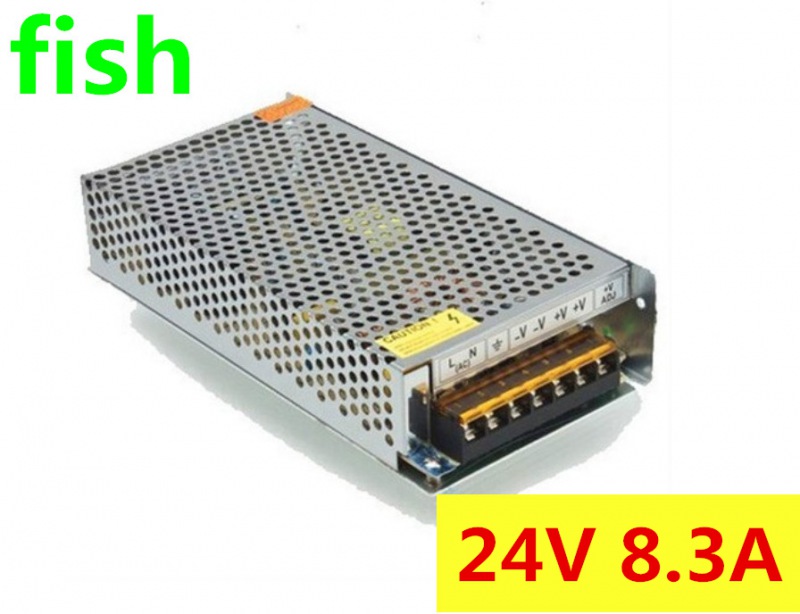

S-200-24

S-200-48

DC Output voltage

5V

12V

15V

24V

48V

Output voltage range(Note:2)

±2%

±1%

±1%

±1%

±1%

Rated output current

40A

16.5A

13.3A

8.3A

4.2A

Output current range

0~40A

0~16.5A

0~13.3A

0~8.3A

0~4.2A

Wave and noise(Note:3)

75mVp-p

75mVp-p

75mVp-p

75mVp-p

75mVp-p

Inlet stability(Note:4)

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

Load stability(Note:5)

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

DC output power

200W

198W

200W

199.2W

200W

Efficiency

80%

84%

84%

85%

86%

Adjustable range for DC voltage

4.75~5.5V

10.8~13.2V

13.5~16.5V

13.5~16.3V

43~53V

AC input voltage range

85~132VAC/176~264VAC selected by switch 47~63Hz,254~370VDC

Input current

4.2A/115V 2.2A/230V

AC Inrush current

Cold-start current 30A/115V 60A/230V

Leakage current

<3.5mA/240VAC

Overload protection

105 ~ 150%  Protection type :pulsing hiccup shutdown Reset: auto recovery.

Over-voltage protection

115%~135% Protection type :shut off output

Temperature coefficient

±0.03%/°C(0~50°C)

Setup, rise, hold up time

200ms, 100ms, 20ms

Vibration

10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Working temperature and humidity

-10°C~+60°C(Refer to output load derating curve),20%~90%RH

Store temperature and humidity

-20°C~+85°C,10%~95%RH

Safety standards

Meet UL1012 requirement(Not apply for the mark)

EMC standards

Meet FCC PART 15J Conduction class A

Note

1. The parameter under the testing condition : 230vAC input ,rated load,25°C70% RH. Temperature.

2. Tolerance the setting tolerance, circuit stability and load stability.(Note:5).

3. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.

4. Inlet voltage stability test : the lowest voltage will be up to the highest voltage when the circuit overload.

5. Load stability test: The load is from 0% to 100%.
