Model

 Specification

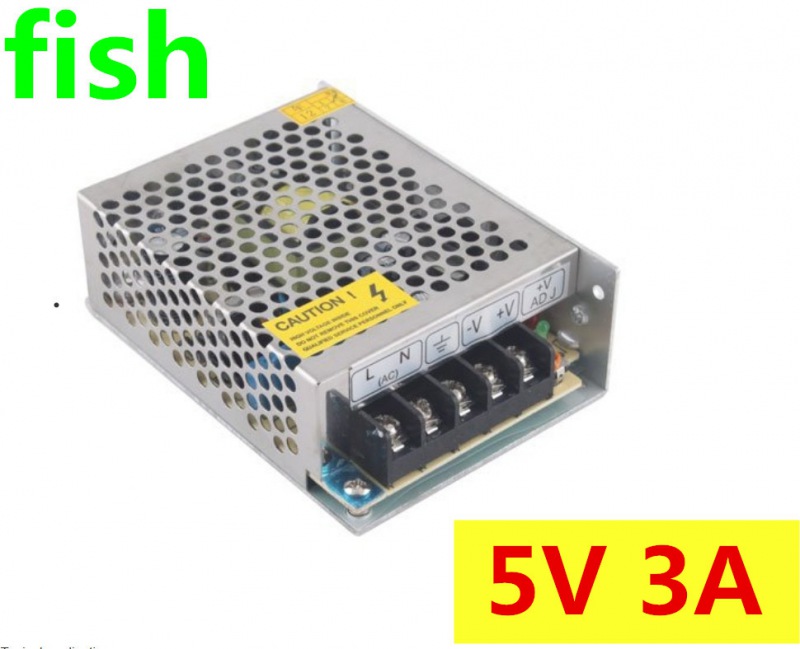

                S-15-5

S-15-12

S-15-24

DC Output voltage

5V

12V

24V

Output voltage range(Note:2)

±2%

±1%

±1%

Rated output current

3A

1.3A

0.7A

Output current range

0~3A

0~1.3A

0~0.7A

Wave and noise(Note:3)

100mVp-p

50mVp-p

50mVp-p

Inlet stability(Note:4)

±0.5%

±0.5%

±0.5%

Load stability(Note:5)

±1%

±0.2%

±0.5%

DC output power

15W

15.6W

16.8W

Efficiency

70%

74%

76%

Adjustable range for DC voltage

+10,-5%

±10%

±10%

AC input voltage range

85~132VAC/170~264VAC selected by switch 47~63Hz,240~370VDC

Input current

0.5A/115V 0.25A/230V

AC Inrush current

Cold-start current 15A/115V 30A/230V

Leakage current

<0.55mA/240VAC

Overload protection

105%-150% Type: pulsing hiccup shutdown Reset: auto recovery

Temperature coefficient

±0.02%/°C(0~50°C)

Setup, rise, hold up time

200ms 100ms 30ms

Vibration

10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Working temperature and humidity

-10°C~+60°C(Refer to output load derating curve),20%~90%RH

Store temperature and humidity

-20°C~+85°C,10%~95%RH

Safety standards

Meet UL 1012 requirement(Not apply for the mark)

EMC standards

Meet FCC PART15 J Conduction class B

Note

1. The parameter under the testing condition : 230vAC input ,rated load,25°C70% RH. Temperature.

2. Tolerance the setting tolerance, circuit stability and load stability.(Note:5).

3. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.

4. Inlet voltage stability test : the lowest voltage will be up to the highest voltage when the circuit overload.

5. Load stability test: The load is from 0% to 100%.
