Model

Specification

S-100-3

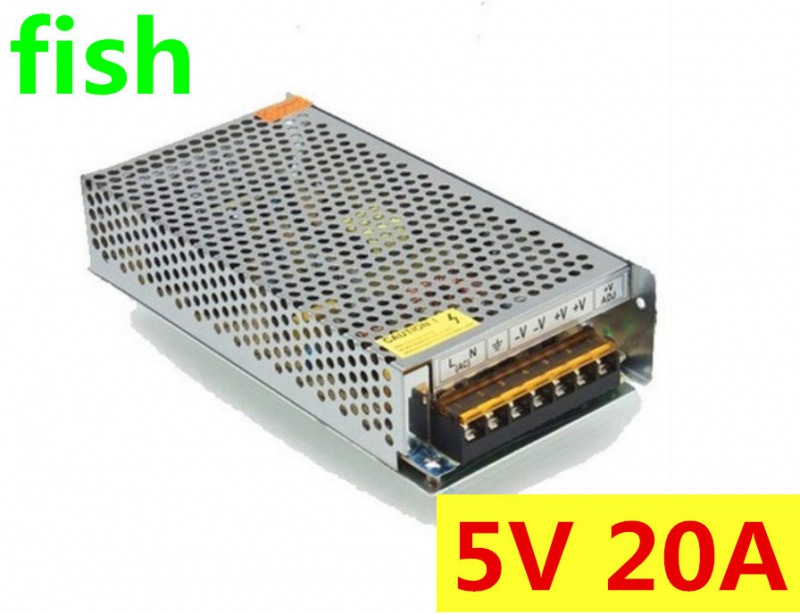

S-100-5

S-100-7.5

S-100-12

S-100-15

S-100-24

S-100-27

S-100-48

  DC Output voltage

 3V

 5V

 7.5V

 12V

  15V

 24V

   27V

   48V

  Output voltage range(Note:2)

  ±2%

  ±2%

  ±1%

  ±1%

  ±1%

  ±1%

  ±1%

  ±1%

  Rated output current

  20A

  20A

  13.6A

  8.5A

  6.7A

  4.5A

  3.7A

 2A

  Output current range

  0~20A

  0~20A

  0~13.6A

  0~8.5A

  0~6.7A

  0~4.5A

  0~3.7A

  0~2A

  Wave and noise(Note:3)

  75mVp-p

  75mVp-p

  70mVp-p

  60mVp-p

  60mVp-p

  50mVp-p

  50mVp-p

  50mVp-p

  Inlet stability(Note:4)

  ±0.5%

  ±0.5%

  ±0.5%

  ±0.3%

  ±0.3%

  ±0.2%

  ±0.2%

  ±0.2%

  Load stability(Note:5)

  ±0.5%

  ±0.5%

  ±0.5%

   ±0.3%

  ±0.3%

   ±0.2%

   ±0.2%

   ±0.2%

  DC output power

  60W

  100W

  102W

  102W

  100.5W

  108W

  100W

  96W

  Efficiency

  74%

  78%

  80%

  82%

  82%

  85%

  86%

  86%

  Adjustable range for DC voltage

  2.85~3.3V

  4.75~5.5V

  6.75~8.25V

  10.8~13.2V

  13.5~16.5V

  21.6~26.4V

  26~32V

  43.2~52.8V

  AC input voltage range

         85~132VAC/180~264VAC selected by switch 47~63Hz,255~370VDC

  Input current

         2.4A/115V  1.2A/230V

  AC Inrush current

         Cold-start current 30A/115V  60A/230V

  Leakage current

         <1mA/240VAC

  Overload protection

        105% ~ 150%

 105% ~ 2000%

105% ~ 150%

         Type: pulsing hiccup shutdown  Reset: Recycled AC ON/OFF

  Temperature coefficient

         ±0.03%/°C(0~50°C)

  Setup, rise, hold up time

         200ms, 100ms, 30ms

  Vibration

         10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

  Withstand voltage

         I/P-O/P:1.5KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

  Isolation resistance

         I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

  Working temperature and humidity

         -10°C~+60°C(Refer to output derating curve), 20%~90%RH

  Store temperature and humidity

         -20°C~+85°C, 10%~95%RH

  Safety standards

         Meet UL1012 requirement(Not apply for the mark)

  EMC standards

         Meet FCC PART 15J Conduction class B

Note:

1. The parameter under the testing condition: 230VAC input, rated load, 25°C70% RH. Temperature.
2. Tolerance: Including setting tolerance, circuit stability and load stability. (Note: 5).
3. Wave test: Adopting “A12” double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
4. Inlet voltage stability test: the lowest voltage will be up to the highest voltage when the circuit overload.
5. Load stability test: The load is from 0% to 100%.
