Model

Specification

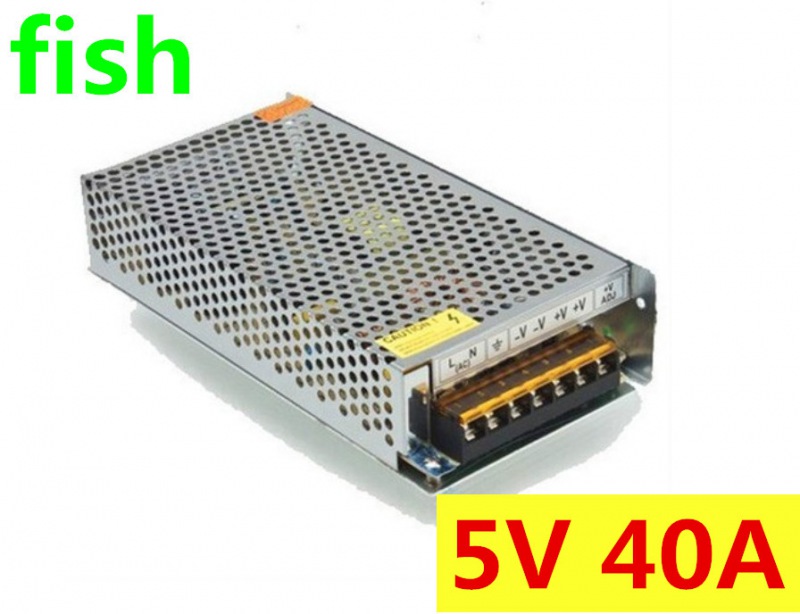

S-200-5

S-200-12

S-200-15

S-200-24

S-200-48

  DC Output voltage

 5V

 12V

  15V

 24V

     48V

  Output voltage range(Note:2)

    ±2%

  ±1%

  ±1%

  ±1%

   ±1%

  Rated output current

   40A

  16.5A

  13.3A

  8.5A

   4.2A

  Output current range

  0~40A

  0~16.5A

  0~13.3A

  0~8.5A

   0~4.2A

  Wave and noise(Note:3)

    75mVp-p

  75mVp-p

  75mVp-p

  75mVp-p

    75mVp-p

  Inlet stability(Note:4)

  ±0.5%

  ±0.5%

  ±0.5%

  ±0.5%

   ±0.5%

  Load stability(Note:5)

    ±0.5%

   ±0.5%

  ±05%

   ±0.5%

     ±0.5%

  DC output power

   200W

  198W

  200W

  200W

   200W

  Efficiency

    80%

  84%

  84%

  85%

    86%

  Adjustable range for DC voltage

    4.75~5.5V

10.8~13.2V

  13.5~16.5V

  13.5~16.5V

43~53V

  AC input voltage range

         90~132VAC/180~264VAC selected by switch 47~63Hz, 254~370VDC

  Input current

         4.2A/115V  2.2A/230V

  AC Inrush current

         Cold-start current 30A/115V  60A/230V

  Leakage current

         <3.5mA/240VAC

  Overload protection

        105% ~ 150%  Type: cut down output  Reset: auto recovery.

Over-voltage protection

         115%~135%

  Temperature coefficient

         ±0.03%/°C(0~50°C)

  Setup, rise, hold up time

         200ms, 100ms, 20ms

  Vibration

         10~500Hz, 2G 10min,/1 cycle. Period for 60min, Each axes

  Withstand voltage

         I/P-O/P:1.5KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

  Isolation resistance

         I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

  Working temperature and humidity

         -10°C~+60°C(Refer to output derating curve), 20%~90%RH

  Store temperature and humidity

         -20°C~+85°C, 10%~95%RH

  Safety standards

         Meet UL1012 requirement(Not apply for the mark)

  EMC standards

         Meet FCC PART 15J Conduction class B

Note:
1. The parameter under the testing condition: 230VAC input, rated load, 25°C70% RH. Temperature.
2. Tolerance: Including setting tolerance, circuit stability and load stability. (Note: 5).
3. Wave test: Adopting “A12” double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
4. Inlet voltage stability test: the lowest voltage will be up to the highest voltage when the circuit overload.
5. Load stability test: The load is from 0% to 100%.
