85% 100mVp-p 75mVp-p  Model

Specification

  S-240-5

  S-240-7.5

  S-240-12

  S-240-13.5

  S-240-15

  S-240-24

  S-240-27

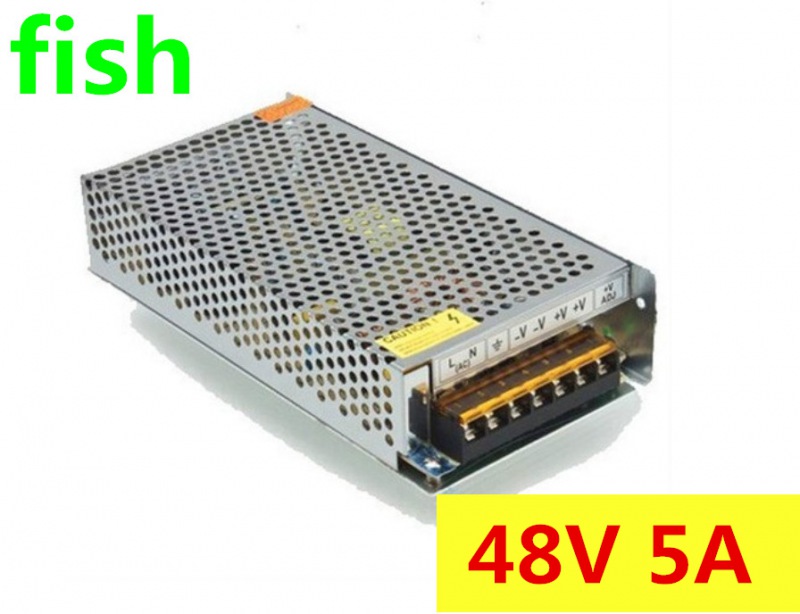

S-240-48

  DC Output voltage

  5V

  7.5V

  7.5V

  13.5V

 15V

  24V

 27V

 48V

  Output voltage range(Note:2)

  ±2%

  ±2%

  ±1%

  ±1%

  ±1%

  ±1%

  ±1%

  ±1%

  Rated output current

 45A

 33A

20A

18A

16.5A

10A

9A

5A

  Output current range

  0~45A

  0~33A

  0~20A

  0~18A

  0~16.5A

  0~10A

  0~9A

  0~5A

  Wave and noise(Note:3)

  75mVp-p

  75mVp-p

  75mVp-p

  75mVp-p

  75mVp-p

  75mVp-p

   100mVp-p

  100mVp-p

  Inlet stability(Note:4)

  ±0.5%

  ±0.5%

  ±0.5%

  ±0.5%

  ±0.5%

  ±0.5%

  ±0.5%

  ±0.5%

  Load stability(Note:5)

  ±1%

  ±1%

  ±0.5%

  ±0.5%

  ±0.5%

  ±0.5%

  ±0.5%

  ±0.5%

  DC output power

  225W

  240W

  240W

  240W

  240W

  240W

  240W

  240W

  Efficiency

  74%

  79%

  83%

  83%

  84%

  85%

  85%

  86%

  Adjustable range for DC voltage

  4.5~5.6V

  6~9V

10~13.2V

  12~15V

  13.5~18V

  20~26.4V

  26~32V

  41~56V

  AC input voltage range

         90~132VAC/180~264VAC selected by switch 47~63Hz, 254~370VDC

  Input current

         3.6A/115V  1.8A/230V

  AC Inrush current

         25A/115V  50A/230V

  Leakage current

         <3.5mA/240VAC

  Overload protection

        105 ~ 150% Type: pulsing hiccup shutdown Reset: auto recovery.

  Over-voltage protection

         115%~135%

  High-temperature protection

         ......................

  Temperature coefficient

         ±0.03%/°C(0~50°C)

  Setup, rise, hold up time

         200ms, 100ms, 20ms

  Vibration

         10~500Hz, 2G 10min,/1 cycle. Period for 60min, Each axes

  Withstand voltage

         I/P-O/P:1.5KVAC  I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

  Isolation resistance

         I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

  Working temperature and humidity

         -10°C~+60°C (Refer to output derating curve), 20%~90%RH

  Store temperature and humidity

         -20°C~+85°C, 10%~95%RH

  Safety standards

         Design refer to UL 1950

  EMC standards

         Design refer to FCC PART15J class A

Note:

1. The parameter under the testing condition : 230VAC input, rated load, 25°C70% RH. Temperature.
2. Tolerance: Including setting tolerance, circuit stability and load stability. (Note: 5).
3. Wave test: Adopting “A12” double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.
4. Inlet voltage stability test: the lowest voltage will be up to the highest voltage when the circuit overload.
5. Load stability test: The load is from 0% to 100%.
6. C3, 4, 32 must be knocked down.
