Model

Specification

                    S-600-12

                   S-600-24

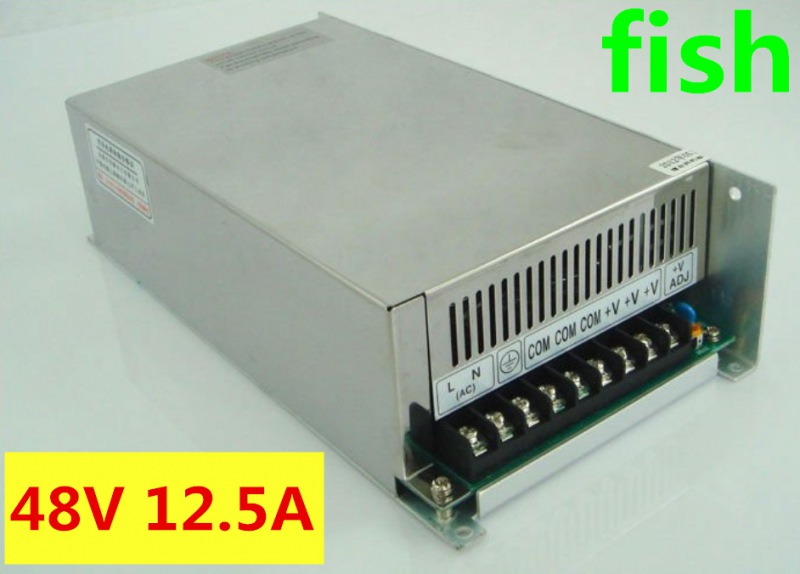

                S-600-48

DC Output voltage

12V

24V

48V

Output voltage range(Note:2)

±1%

±1%

±1%

Rated output current

50A

25A

12.5A

Output current range

0~50A

0~25A

0~12.5A

Wave and noise(Note:3)

120mVp-p

240mVp-p

240mVp-p

Inlet stability(Note:4)

±1%

±1%

±1%

Load stability(Note:5)

±1%

±1%

±0.3%

DC output power

600W

600W

600W

Efficiency

83%

86%

87%

Adjustable range for DC voltage

+10,-5%

±10%

±10%

AC input voltage range

100~130VAC/190~240VAC,DC250~340VDC

Input current

5A/230V

AC Inrush current

46A/230V

Leakage current

<3.5mA/240VAC

Overload protection

105%-150% Type: pulsing hiccup shutdown Reset: auto recovery

Temperature coefficient

±0.03%/°C(0~50°C)

Setup, rise, hold up time

1S 100mS 50mS

Vibration

10~500Hz, 2G 10min,/1 cycle. Period for 60min,Each axes

Withstand voltage

I/P-O/P:1.5KVAC I/P-FG:1.5KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

Working temperature and humidity

-10°C~+60°C(Refer to output load derating curve), 10 %~95%RH

Store temperature and humidity

-20°C~+85°C,10%~95%RH

Safety standards

GB4949,UL60950,EN60950

EMC standards

According to GB9254 EN55022 EN55024 A level design

Note

1. The parameter under the testing condition : 230vAC input ,rated load,25°C70% RH. Temperature.

2. Tolerance the setting tolerance, circuit stability and load stability.(Note:5).

3. Wave test: adopting "A12"double wire for 20MHz, and 0.1 UF&47UF capacitor short-circuit for interrupting.

4. Inlet voltage stability test : the lowest voltage will be up to the highest voltage when the circuit overload.

5. Load stability test: The load is from 0% to 100%.
