Power

Color

Color Temperature

Wavelength

Forward Voltage

Forward Current

Luminous Flux

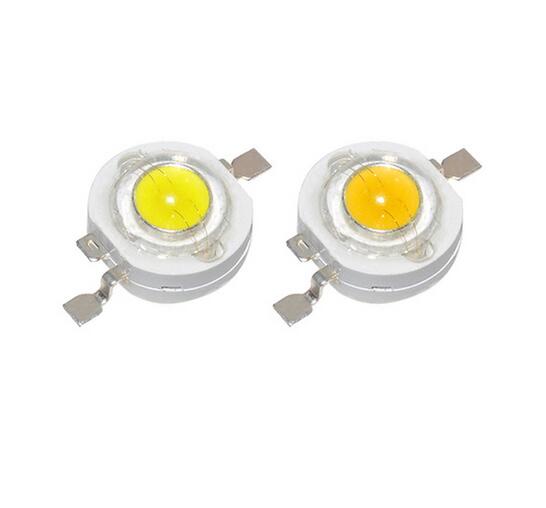

1W

Warm White

3000-3500K

3.2-3.4V

280-350mA

100-110LM

White

6000-6500K

3.2-3.4V

280-350mA

100-110LM

Cool White

10000-15000K

3.2-3.4V

280-350mA

100-110LM

Natural White

4000-4500K

3.2-3.4V

280-350mA

100-110LM

Red

620-625nm

2.0-2.2V

280-350mA

50-60LM

Blue

460-470nm

3.2-3.4V

280-350mA

35-45LM

Green

520-525nm

3.2-3.4V

280-350mA

80-90LM

Yellow

590-592nm

2.0-2.2V

280-350mA

60-70LM

Power

Color

Color Temperature

Wavelength

Forward Voltage

Forward Current

Luminous Flux

3W

Warm White

3000-3500K

3.2-3.4V

560-700mA

260-280LM

White

6000-6500K

3.2-3.4V

560-700mA

260-280LM

Cool White

10000-15000K

3.2-3.4V

560-700mA

260-280LM

Natural White

4000-4500K

3.2-3.4V

560-700mA

260-280LM

Red

620-625nm

2.0-2.2V

400-500mA

60-70LM

Blue

460-470nm

3.2-3.4V

400-500mA

50-60LM

Green

520-525nm

3.2-3.4V

400-500mA

140-160LM

Yellow

590-592nm

2.0-2.2V

400-500mA

90-100LM

RGB

R: 620-625nm

G: 520-525nm

B: 460-470nm

R:2.0-2.2V

G:3.0-3.2V

B:3.0-3.2V

R:280-350mA

G:280-350mA

B:280-350mA

R:40-50LM

G:70-80LM

B:30-40LM

Power

Color

Color Temperature

Wavelength

Forward Voltage

Forward Current

Luminous Flux

5W

Warm White

3000-3500K

6-7V

700mA

500-600LM

White

6000-6500K

6-7V

700mA

500-600LM

Cool White

10000-15000K

6-7V

700mA

500-600LM

Natural White

4000-4500K

6-7V

700mA

500-600LM

Red

620-625nm

2.0-2.2V

1100-1200mA

115-120LM

Blue

460-470nm

6-7V

700mA

500-600LM

Green

520-525nm

6-7V

700mA

150-200LM

Yellow

590-592nm

2.0-2.2V

1100-1200mA

500-600LM

Power

Color

Color Temperature

Wavelength

Forward Voltage

Forward Current

Luminous Flux

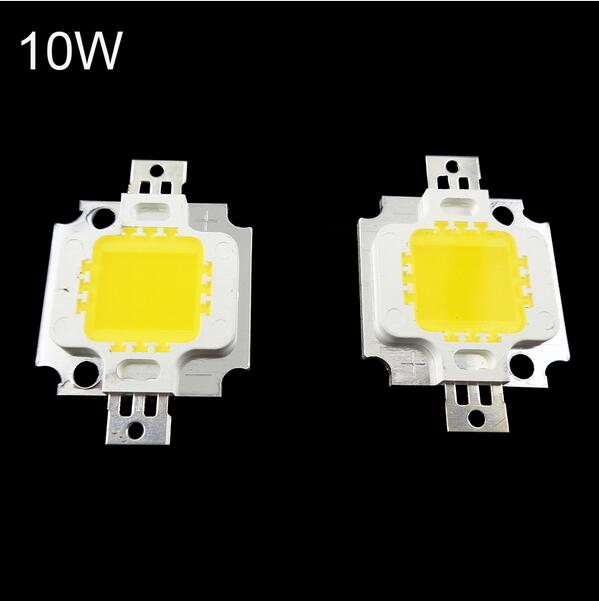

10W

(3x3)

Warm White

3000-3500K

9.0-11.0V

840-1000mA

900-1000LM

White

6000-6500K

9.0-11.0V

840-1000mA

900-1000LM

Cool White

10000-15000K

9.0-11.0V

840-1000mA

900-1000LM

Natural White

4000-4500K

9.0-11.0V

840-1000mA

900-1000LM

Red

620-625nm

6.0-7.0V

840-1000mA

350-450LM

Blue

460-470nm

9.0-11.0V

840-1000mA

90-100LM

Green

520-525nm

9.0-11.0V

840-1000mA

600-800LM

Yellow

590-592nm

6.0-7.0V

840-1000mA

450-500LM

RGB

R: 620-625nm

G: 520-525nm

B: 460-470nm

R: 6.0-7.0V

G: 9.0-11.0V

B: 9.0-11.0V

R:280-350mA

G:280-350mA

B:280-350mA

R:90-100LM

G:120-130LM

B:30-40LM

Power

Color

Color Temperature

Wavelength

Forward Voltage

Forward Current

Luminous Flux

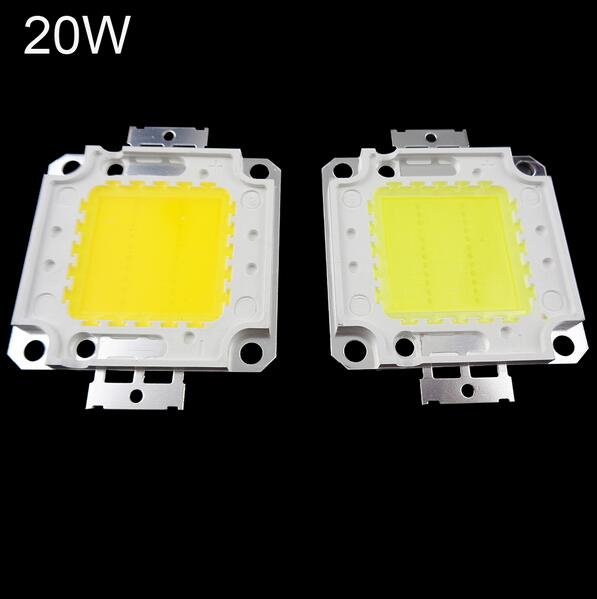

20W

(10x2)

Warm White

3000-3500K

32-34V

560-700mA

1600-1800LM

White

6000-6500K

32-34V

560-700mA

1600-1800LM

Cool White

10000-15000K

32-34V

560-700mA

1600-1800LM

Natural White

4000-4500K

32-34V

560-700mA

1600-1800LM

Red

620-625nm

20-22V

560-700mA

1600-1800LM

Blue

460-470nm

32-34V

560-700mA

350-400LM

Green

520-525nm

30-32V

560-700mA

1600-1800LM

Yellow

590-592nm

20-22V

560-700mA

1400-1600LM

RGB

(6x3)

R: 620-625nm

G: 520-525nm

B: 460-470nm

R:12-14V

G:18-21V

B:18-21V

R:280-350mA

G:280-350mA

B:280-350mA

R:180-200LM

G:250-300LM

B:60-80LM

Power

Color

Color Temperature

Wavelength

Forward Voltage

Forward Current

Luminous Flux

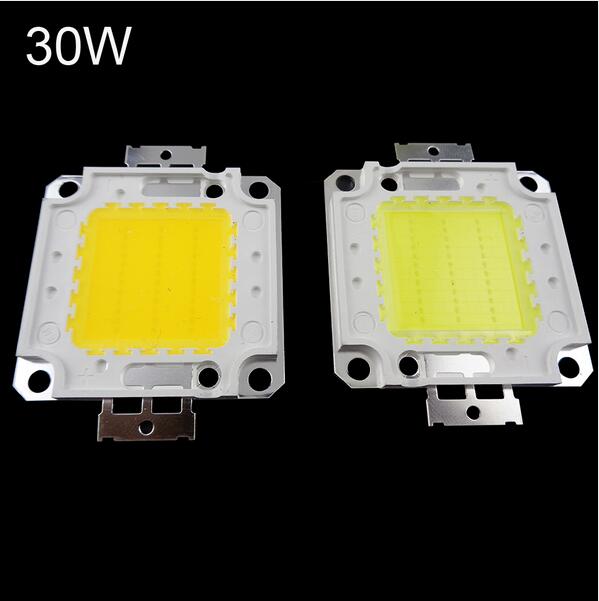

30W

(10x3)

Warm White

3000-3500K

32-34V

840-1000mA

2700-2800LM

White

6000-6500K

32-34V

840-1000mA

2700-2800 LM

Cool White

10000-15000K

32-34V

840-1000mA

2700-2800 LM

Natural White

4000-4500K

32-34V

840-1000mA

2700-2800 LM

Red

620-625nm

20-22V

840-1000mA

2700-2800 LM

Blue

460-470nm

32-34V

840-1000mA

900-1000 LM

Green

520-525nm

30-32V

840-1000mA

2700-3000 LM

Yellow

590-592nm

20-22V

840-1000mA

2400-2600 LM

RGB

R: 620-625nm

G: 520-525nm

B: 460-470nm

R:20-22

G:30-32

B:32-34

R:280-350mA

G:280-350mA

B:280-350mA

R:350-400LM

G:600-800LM

B:90-100LM

Power

Color

Color Temperature

Wavelength

Forward Voltage

Forward Current

Luminous Flux

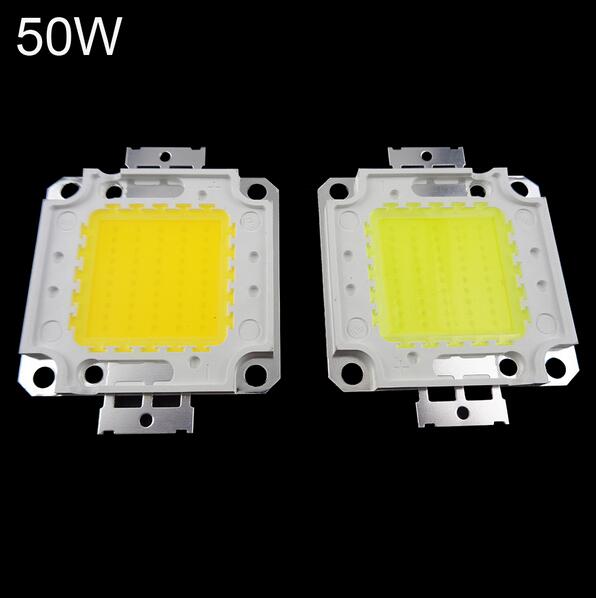

50W

(10x5)

Warm White

3000-3500K

32-34V

1400-1700mA

4500-5000LM

White

6000-6500K

32-34V

1400-1700mA

4500-5000LM

Cool White

10000-15000K

32-34V

1400-1700mA

4500-5000LM

Natural White

4000-4500K

32-34V

1400-1700mA

4500-5000LM

Red

620-625nm

20-22V

1400-1700mA

3500-4000LM

Blue

460-470nm

32-34V

1400-1700mA

2000-2500LM

Green

520-525nm

30-32V

1400-1700mA

4000-4500LM

Yellow

590-592nm

20-22V

1400-1700mA

3500-4000LM

RGB

(8x6)

R: 620-625nm

G: 520-525nm

B: 460-470nm

R:16-18V

G:18-21V

B: 18-21V

R:560-700mA

G:560-700mA

B:560-700mA

R:500-600LM

G:1000-1200LM

B:150-180LM

Power

Color

Color Temperature

Wavelength

Forward Voltage

Forward Current

Luminous Flux

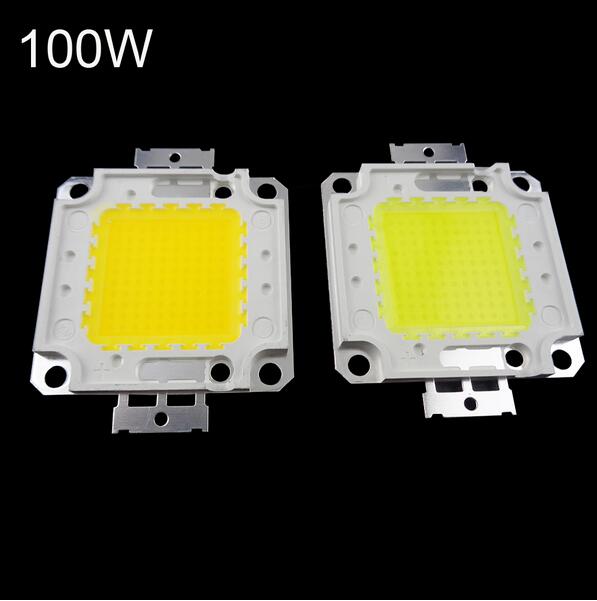

100W

(10x10)

Warm White

3000-3500K

32-34V

2800-3500mA

8000-9000LM

White

6000-6500K

32-34V

2800-3500mA

8000-9000LM

Cool White

10000-15000K

32-34V

2800-3500mA

8000-9000LM

Natural White

4000-4500K

32-34V

2800-3500mA

8000-9000LM

Red

620-625nm

20-22V

2800-3500mA

6000-6500LM

Blue

460-470nm

32-34V

2800-3500mA

3000-4000LM

Green

520-525nm

30-32V

2800-3500mA

7000-8000LM

Yellow

590-592nm

20-22V

2800-3500mA

7000-8000LM

RGB

(11x9)

R: 620-625nm

G: 520-525nm

B: 460-470nm

R:22-24V

G:32-34V

B:32-34V

R:840-1000mA

G:840-1000mA

B:840-1000mA

R:1000-1200LM

G:2000-2400LM

B:300-400LM
