LED controller

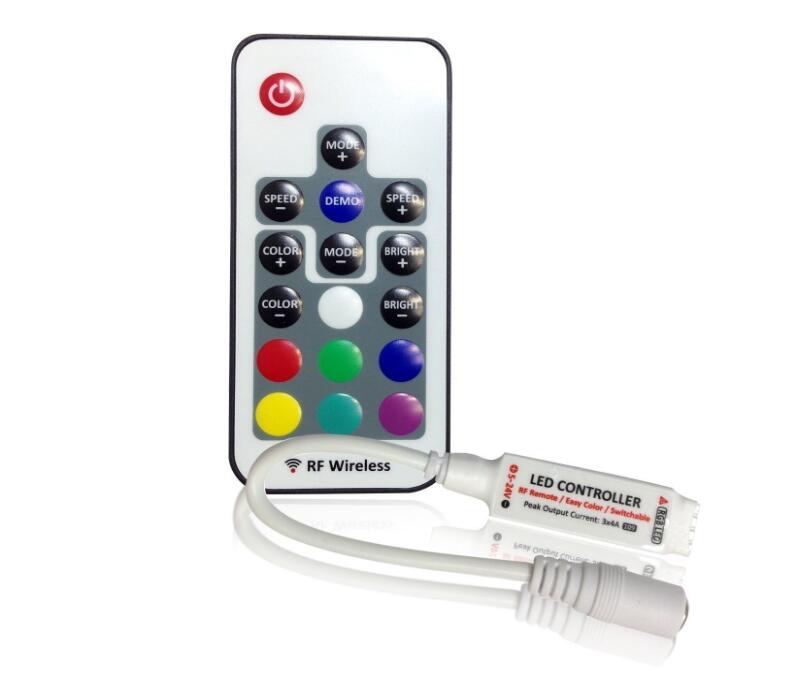

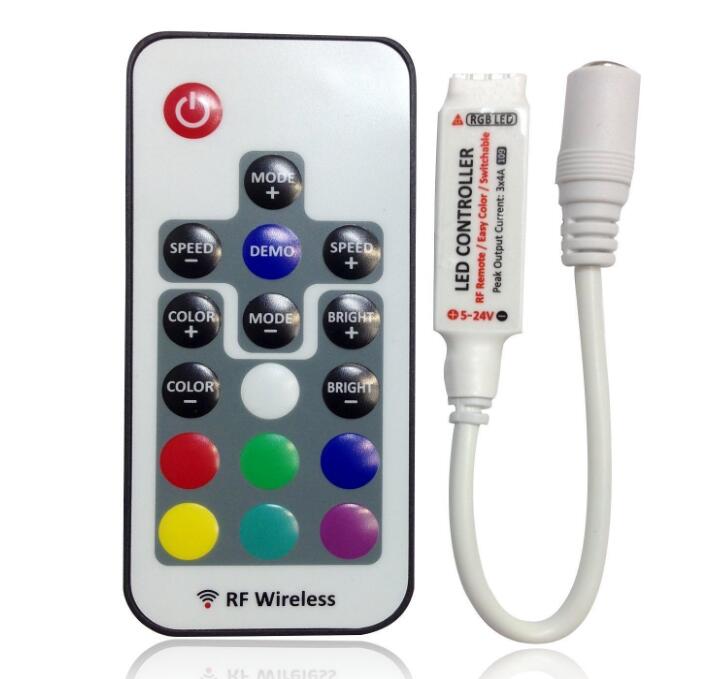

5V-24V 12A RGB LED Controller 17-key RF Wireless Remote for 5050 RGB LED Strip

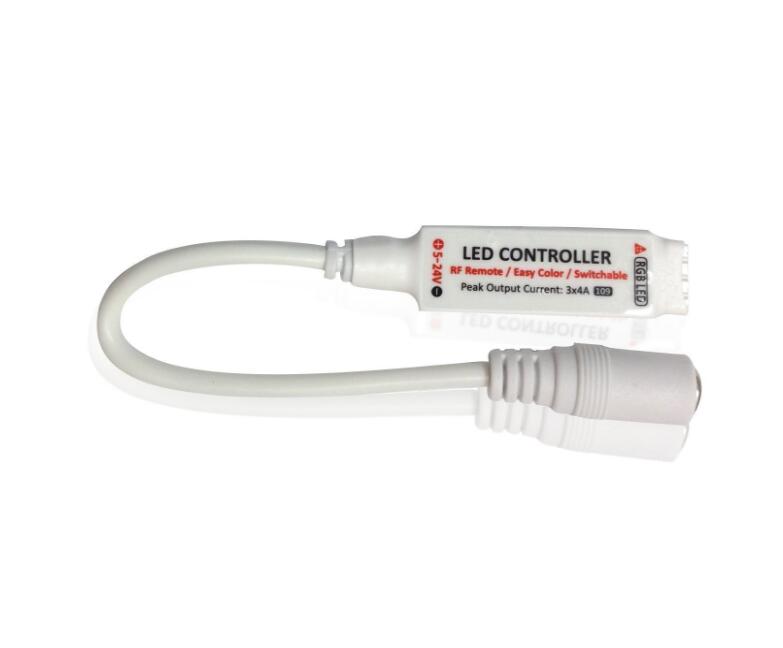

This mini controller is tiny in its size(easy to be
concealed) but great in its function. Through
connecting with this controller, it will be able to
control the LED RGB strips bu the accompanied
RF controller,achieving different modes and colors.
Specifications:
--Input voltage: 5V-24V/DC
--Working current : 12A
--Output : 3 channels, common anode connection
--Overall dimension: 1.6(L)×0.5(W)×0.2(H) inch

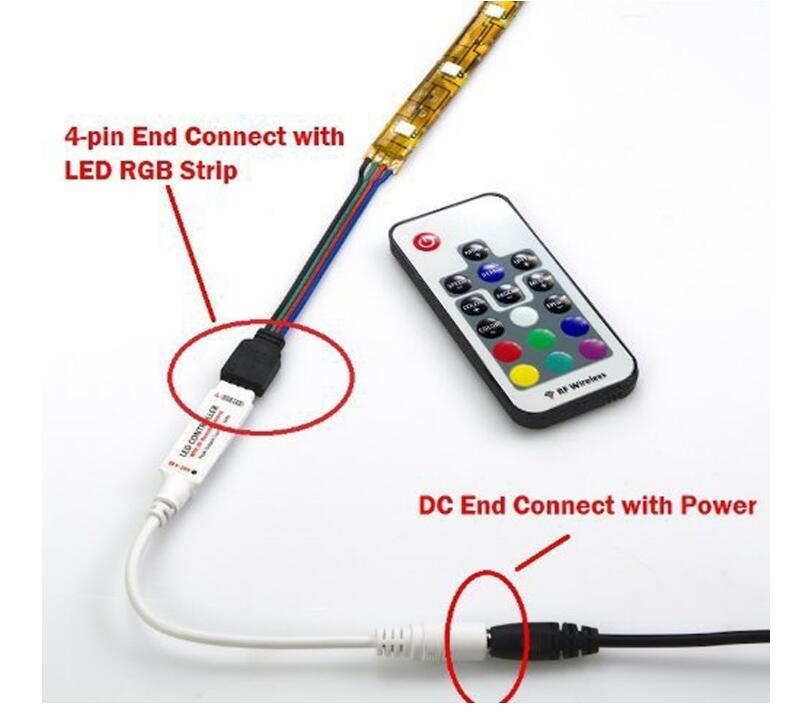

--Female connector on the other side for
connecting with power supply

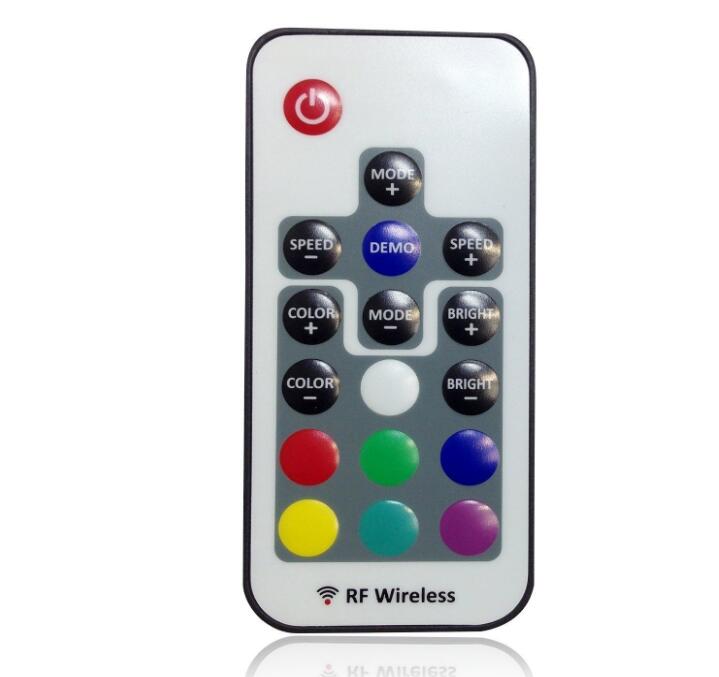

About the RF Remote
the RF wireless remote signal can pass through
barrier, it gets a longer control distance(about 15
meters at open area) so it is not necessary to aim
at the main unit when operating.
Function buttons on RF remote:
--ON / Standby: to turn ON or switch to standby
mode.
--MODE+ / MODE-:dynamic mode adjustment.
Switch to dynamic mode from static color mode, or
change between dynamic modes.
--SPEED+ / SPEED- : Adjust speed in dynamic
mode for 5 levels.
--COLOR+ / COLOR- :static color adjustment.
Swith to static color from dynamic mode,or
between static colors, 20 static colors.
--BRIGHT+ / BRIGHT- : adjust static color
brightness. Strip will switch to static color if press it
at dynamic mode.
--DEMO : switch to Demo mode. At Demo mode,
strip will cycle 9 dynamic modes and 3 times for
each mode.
--SINGLE COLOR SELECT:white/red/green
blue/yellowing/pink
Caution: RF remote is driven by 3V CR2025 button
battery. Please try to replace with the same type
battery.
Package including: 1×mini RGB controller and
1×RF wireless remote. (battery not include)
